Introduction
Efforts to mitigate and circumscribe the spread of the SARSCoV2 virus have so far relied on nonpharmacological interventions (NPIs), set in place by most countries since March 2020, including social distancing, personal protective measures, mass quarantines, and other forms of limiting population movement. While the timely deployment of measures combined with an appropriate breadth of interventions has proven successful in effectively reducing the transmission rates of this virus1,2, the socioeconomic impacts caused by extensive lockdowns are notably harsher to lower and middleincome countries3,4, for which rescue spending packages and other bailout plans are unforeseeable. In this sense, finding ways to establish an equilibrium between keeping transmission under control while minimizing damages to the economy and society is highly desirable.
The challenges involved in controlling the SARSCoV2 epidemic are many. Using Brazil as an example, it is a very large country that ranks third in the number of reported COVID19 cases (after the US and India), registering over 8.1 million infections and more than 203,000 deaths5. The pandemic spread quickly and, in June 2021, Brazil accounted for more than 17.6 million infections and surpassing 494,000 deaths. Firstwave mitigation strategies were largely decentralized, and the majority of governmental interventions occurred by local actions taken by the 26 states and the federal district, and their 5,570 municipalities6,7. Still, mitigation efforts were inadequate to keep SARSCoV2 transmission under control, and the collapse of health services was described throughout the country, which probably influenced the number of fatal outcomes observed to date8,9,10,11,12. Even though in some areas of the country a very high level of infection was reached, such as the city of Manaus with an attack rate of 76%13, this was insufficient to prevent new waves of infection, confirming that herd immunity is not a feasible or ethical route to tackle COVID1914,15. Thus, it is a concrete possibility that subsequent epidemic waves could, once again, pose a heavy burden on health services with consequent loss of lives, in line with the recrudescence of transmission observed in many countries, possibly boosted by the resuming of many economic and social activities.
Mathematical models have played a key role in assessing the effectiveness of public health policies and NPIs to contain the spread of SARSCoV2, as well as to evaluate the transmission dynamics of COVID19 and how it is impacted by the movement of people2,7,16,17,18,19,20. However, the bridging of model outputs to governmental actions aimed at reducing mobility is limited by the inherent uncertainties surrounding the obtained estimates, interpretation difficulties by policymakers, and the lack of full understanding of a model’s predictive capabilities and limitations21.
Accordingly, control algorithms coupled to epidemiological models provide an intuitive means to derive health policies and NPIs from data22,23,24,25. By drawing on the availability of widespread mobility traces from cell phones, and building on the premise that circulation of individuals is a chief contributing factor for SARSCoV2 transmission26, here we report an adaptive Nonlinear Model Predictive Control (NMPC) strategy able to reliably predict an optimal level of governmental interventions to decrease mobility, considering different degrees of social mobility effects, that reduces cases and fatalities and keeps hospitalization requirements below their limits while averting the unnecessary extension of restrictive measures such as lockdowns. We applied the NMPC algorithm to study the disease dynamics in Bahia, the largest and most populous state of Northeast Brazil, with territorial extension comparable to that of France. This framework, however, could be adaptable to deploy in multiple settings and can be particularly useful to other developing nations, which lack the purchasing power of highincome countries to benefit from early vaccine access27, and thus will probably have to coexist with the pandemic effects for longer.
Results
We present our results under the framework of nonlinear disease spread modeling coupled with control theory methods28. This strategy is sufficiently general to be applied to different settings and can be replicated with minimal data information requirements, which are available for most other countries, ie. cases, fatalities, and hospitalization occupancy beds. To illustrate the utility of the method, we subdivide the following sections toward studying the transmission dynamics in the state of Bahia, Brazil. Three steps are described: (1) the definition of a compartmental model that expresses the dynamic of cases, fatalities, and health service requirements, taking into account asymptomatic/nondetected cases and social mobility patterns; (2) an extension of this compartmental model by a system identification procedure including optimal gains to improve forecast accuracy; (3) the inclusion of an optimal control algorithm that can reliably direct the lifting, continuation or intensification of NPIs in light of the epidemiological situation (Supplementary Fig. S8). Throughout the text, we use the terms public health policies and NPIs interchangeably to refer to government measures aimed at controlling COVID19. We were particularly interested in studying policies that resulted in changes to population mobility patterns, since the circulation of (possibly infected) individuals, including a/oligosymptomatics, is a key factor sustaining the spread of SARSCoV2. We refer to this subset of policies as social distancing measures.
Enactment of governmental measures and implications on mobility patterns
Considering the large territory and population of Bahia (Supplementary Fig. S1), the COVID19 dynamics in this state is comparable to that of a whole country. On March 6, the first case was registered in the state, roughly one week after the first confirmed case in the country. By September 15, a total of 285,448 cases had been confirmed, of which 6,040 resulted in deaths. On March 16, the state government established a set of measures to mitigate the transmission. They were implemented and partially eased during the period, primarily targeting specific regions rather than the entire state. Most adopted interventions are related to the restrictions of public events and closure of schools/universities. We note that more detailed information about each government measure is discussed by Jorge et al.7. Table 1 depicts the group of measures associated with the guidelines of each public measure, in which the average of all groups indices is defined as the stringency index, u=100×(O1+O2+O3+O4+C1+C2)/6u=100×(O1+O2+O3+O4+C1+C2)/6.
Initially, we assessed whether there existed a relationship between the extent of government policies and mobility patterns. For this, the stringency index (u), and the social mobility reduction index (SMRI) were used, respectively, as proxies to measure the “strength” of the public policies and the consequent degree of population compliance (Fig. 1). Each policy applied by the government is classified and scored so that the sum of all factors describes the degree of rigidity of government measures. For instance, a decree that allows agglomerations of 100 people contributes to a larger value of the stringency index than a decree that allows agglomerations of 500 people. The definitions of each index and the method used to weigh government measures are detailed in the work of Jorge et al.7. Furthermore, the SMRI represents the degree of restriction in the population’s mobility, which means that a higher SMRI represents lower people’s circulation. We observe that the stringency index translates into the SMRI, since one of the purposes of government measures is to increase social distancing, hence increasing the SMRI. The SMRI had a baseline average of 28.5% (February 128), which denotes the level of social mobility prior to the identification of COVID19 in Brazil and before any public policy was applied to reduce social mobility. The SMRI baseline is defined as the minimum level for the control strategy, and it is calculated from the first disclosed data, available in InLoco dataset29, and 28 days before the pandemic starts. Supplementary investigations regarding the effect of social distancing policies in Brazil can be found in the work of Barberia et al.30. In what followed, six characteristic temporal states were identified: (1) March 615: community transmission had been declared in the state, but no governmental measure had been established (stringency u=0u=0; average SMRI ψ=30.9%ψ=30.9%; (2) March 16–20: initial measures were set in place (u=33.7%u=33.7%; average SMRI ψ=34.4%ψ=34.4%); (3) March 21May 10: this period corresponded to the peak population compliance to distancing recommendations (u=40.9%u=40.9%; average SMRI ψ=46.0%ψ=46.0%); (4) May 11June 15 and June 25August 20: u reached its maximum value of 49.2% (representing the peak of interventions) with average SMRI of 42.2%42.2% and 41.2%41.2%, respectively; (5) June 6–23: population compliance started to decrease with the concurrent reduction in stringency (u=40.9%u=40.9%; average SMRI ψ=39.1%ψ=39.1%); and (6) August 21September 15: following the peak number of cases, a progressive decrease of both stringency and compliance ensued (u=39.1%u=39.1%; average SMRI ψ=39.0%ψ=39.0%).
COVID19 governmental polices and population response. The plot shows the stringency (blue), social mobility reduction (orange) indexes and its 8day average (green) in Bahia. Raw data from March 6 to September 15, 2020 are shown in this graph. The dashed horizontal line represents the baseline SMRI average between February 128, 2020, indicating the level of popular circulation in a preCOVID period.
Reproducing the dynamics of COVID19
To reproduce the transmission dynamics of COVID19 in Bahia, under the previous described social behavior and governmental interventions, we applied the SEIIHURD+ψψ model with all gains gigi =1=1 in supplementary equations (1a) to (1h). A sensitivity analysis of the model was performed, allowing identification of key parameters governing the dynamics of this system (detailed in Supplementary Text).
Based on a visually good fit between observed and modelpredicted values, the SEIIHURD+ψψ model can reproduce the dynamics of COVID19 with respect to the number of cases, deaths, and clinical hospitalization/ICU bed requirements (Fig. 2). In this simulation, epidemiological parameters of the model were kept fixed (table S2), while the SMRI (given by the registered series ψψ) and the transmission rate ββ varied in time. The goodness of fit, estimated using R2R2, varied between 0.4684 (for the number of cases) and 0.9844 (for the ICU requirements). The variability in the official number of new cases is characterized by a seven days period, mainly due to inherent issues in reporting new cases, such as communication delays on nonworking days, the high number of counties and the state territorial dimension. Nevertheless, the model identification procedure can identify the series trend and provide a good representation of the pandemic evolution. We next aimed to improve the forecast accuracy of the model, in particular for the prediction of cases, by employing a parameter identification procedure.
Transmission dynamics of COVID19 in Bahia. Effects of the implemented interventions, mobility patterns and respective coefficient of determination R2R2 on the dynamic of (A) cases (R2=0.4684R2=0.4684), (B) deaths (R2=0.8871R2=0.8871), (C) clinical hospitalization (R2=0.7953R2=0.7953) and (D) ICU bed requirements (R2=0.9844R2=0.9844) at the state level. The solid blue lines represent the evolution of the epidemic given by the SEIIHURD+ψψ model without gains. The shaded error bands represent 5% of the curve extrapolation margin. The assumed parameter values are shown in Supplementary Table S1. Raw data (black dots) from March 6 to September 15, 2020, are shown in this graph with a daily timescale.
Improving forecasting of cases, deaths, and clinical/ICU occupancy
By drawing on the previous result, considering that the SEIIHURD+ψψ model with unitary gains can realistically describe the COVID19 transmission dynamics, we sought to couple an internal controller capable of predicting optimal social mobility actions. Based on the control theory framework28, the internal process in the NMPC algorithm requires an accurate forecast of the pandemic dynamics to formulate predictive control strategies based on a wellposed optimization problem.
Seeking to improve the forecast accuracy of the SEIIHURD+ψψ model without compromising the epidemiological parameters, the gains gigi vary every 13 days, which is consistent with the infection dynamics of the SARSCoV2 virus (and could provide enough days for the validation tests). As an exception, the transmission parameter ββ may change in time, that is, the gain g1g1 is allowed to change within the 13 days windows. In particular, when the internal model also has gi=1gi=1, the results refer to a nominal case analysis. The main goal in the identification stage is to adapt the model fit by assuming that the input data series may suffer interference from several factors, such as case underascertainment and underreporting, as well as notification delays31. In addition, the model parameters may undergo slight variations in the unfolding pandemic due to changes in medical treatments and protocols and the enactment of governmental measures, for instance. Consequently, we conducted an optimization stage to adjust the parameters of the SEIIHURD+ψψ model and increase the quality of the predictions, particularly in the shortterm, for which an enhanced accuracy benefits the most the results of the control algorithm.
Figure 3 presents the model validation, adjusted with data up to August 22, 2020, and its forecasts compared with real data for cumulative cases, deaths, clinical and ICU beds occupancy, up to September 15. The results from the identification approach show that, with a proper adjustment of the gains, it is possible to improve the model’s accuracy and offer reliable predictions for up to 25 days in the future. By assessing the coefficient of determination, R2R2, our results reveal that the optimized model can reproduce the series of cumulative cases (R2=0.9998R2=0.9998), fatalities (R2=0.9994R2=0.9994), clinical (R2=0.9872R2=0.9872) and ICU bed requirements (R2=0.9872R2=0.9872) with high accuracy (Fig. 3).

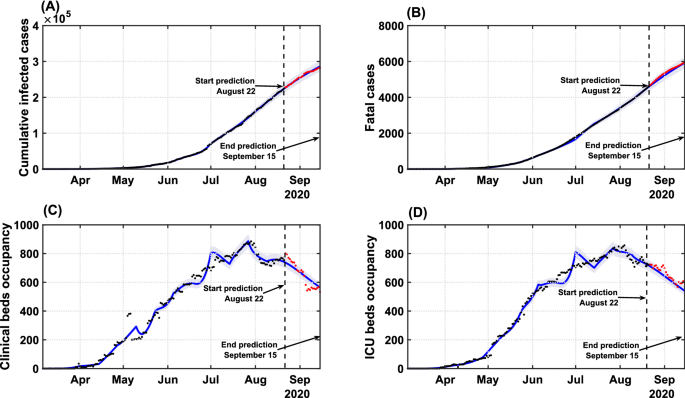

Model validation and forecast of the COVID19 dynamics in Bahia. Model curves adjusted up to August 22 (blue lines), accounting for the identification procedure for gigi parameters, and respective coefficient of determination R2R2 for: (A) cumulative cases (R2=0.9998R2=0.9998); (B) deaths (R2=0.9994R2=0.9994); (C) clinical hospitalization (R2=0.9872R2=0.9872) and (D) ICU bed requirements (R2=0.9872R2=0.9872) at the state level. Data beyond the dashed vertical line indicate the predicted values for the epidemiological parameters between August 22 and September 15. The shaded error bands represent 5% of the curve extrapolation margin. The assumed model parameter values are shown in Supplementary Table S4. Raw data (black dots) from March 6 to September 15, 2020, are shown in this graph with a daily timescale.
The estimated gains are shown in Supplementary Tables S4 and S5. Although we obtained estimates for a total of 13 windows, the variance of the gain series is very small and enough to improve the forecast, indicating that the mathematical model is representative of the underlying epidemic unfolding process. By coupling the prediction capability of the SEIIHURD+ψψ model with a control algorithm, an optimal framework for the deployment of governmental interventions that accounts for human mobility patterns can be developed.
An optimal control guide for public health interventions
Next, we combined the SEIIHURD+ψψ model with a predictive control algorithm in order to determine an optimal level of social mobility and governmental measures that would allow a reduction in cases and fatalities and preserve clinical and ICU bed occupancy rates below their limits. We note that the operation of this control algorithm is periodic, in such a way that new public health measures are determined every week, in line with the accurate shortterm projections produced by the model. Also, many local governments now rely on multiphased approaches to ease or increase the level of measures, usually based on objective metrics such as occupation of hospitals, RtRt, and trajectory dynamics of cases32,33,34,35,36. Consequently, our strategy can also support the periodic recalibration of stringency in phased reopening strategies to minimize the chances of surges.
Our control algorithm takes as input the time series of u and ψψ, as presented in Fig. 1. The possible scenarios of people’s response influence the future values of stringency. As shown earlier, governmental measures impact population mobility, including in situations of low population compliance. This scenario is represented in Fig. 1, from early May to the end of August, when a downward trend in the SMRI over time is noted, despite increasing levels of u(t). Thus, we simulated three scenarios corresponding to high and low degrees of population compliance, translated into high/low mobility patterns, and a third scenario mimicking most closely what actually occurred during the period in terms of population mobility, therefore predicting the required levels of measures to reach epidemic control. For this latter scenario, the series of ψ(t)ψ(t) from March 6 to September 15 was given as input to the model. Since data for the SMRI from September 16 onward was unavailable, as we were projecting into the future, we considered that every three weeks the last SMRI value in the ψψ time series would be lessened by 2% until reaching the minimum value measured at the beginning of the pandemic, reasoning that the decrease in the number of cases and deaths would lead to a reduction of the SMRI. We refer to this scenario as “validated model” in Fig. 5, since it uses the actual series of SMRI (truncated on September 16) shown in Fig. 4B.
High and low compliance scenarios were considered by adjusting supplementary equation (11), which provides the mathematical relation between u and ψψ, evaluated on the historical data presented in Fig. 1. We calculated past gains KψKψ by considering the mean value of ψψ in each constant period of u. Further, we considered only the data series beginning on March 16, when the first interventions were enacted. The calculated gains KψKψ are 1.0208 from March 1620; 1.1247 from March 21May 10; 0.8577 from May 11June 15; 0.9560 from June 623; 0.8374 from June 24August 20; and 0.9974 from August 21September 15. Therefore, to simulate the control algorithm, we can define the high compliance scenario at Kψ=1.1247Kψ=1.1247, corresponding to the dynamic at the beginning of the epidemic in the state; and the low compliance scenario at Kψ=0.8374Kψ=0.8374, which corresponds to the period in which the peak of cases, fatalities, and hospitalizations starts to decline. Therefore, high and low population compliance scenarios are associated with the restriction in social mobility ψψ according to the stringency level u of public policies. The higher the KψKψ value higher will be the social distancing in response to the applied public measures. Note that the SMRI is limited to a maximum of 1 (complete lockdown) and a minimum of 0.2865 (SMRI baseline).
Another important factor to weigh is how stringent governments are willing to be in imposing control policies. While some countries opted for more liberal approaches to tackle COVID19, such as Sweden, which relied mostly on responsible behavior, others maintained very strict curfews for extended periods (eg. Argentina)37. A reasonable goal should be to keep the health care system below its capacity level, albeit our algorithm permits tuning the parameter Q to make stringency (u(t)) more or less flexible, which ultimately impacts economic sectors and social behavior. Therefore, from March 6 to May 15 we assume Q=8⋅104Q=8⋅104, from May 16 to August 23 we set Q=3⋅104Q=3⋅104 and from August 24 to October 15 Q=1⋅104Q=1⋅104. An analysis of this parameter’s variation and its effect on future predictions is given in Supplementary Figs. S5 and S6.
In Fig. 4 we show the results of the NMPC algorithm applied to (re)construct the levels of governmental measures, that varied between 21.62% and 49.21%, enforced from March 6 to September 15, and a predicted scenario from September 16 to October 15, considering the popular compliance settings defined previously. The low and high compliance scenarios are compared with the levels of enacted measures since the start of the pandemic (Fig. 4A).
Real and simulated social mobility and governmental interventions in the state of Bahia. Levels of stringency (A) and social mobility reduction (B) indexes are shown for the high and low compliance scenarios, as well as the actual value of these metrics in the statelevel during the period. The observed SMRI values (March 6September 15) consist of a 8day moving average. The dotted line in panel (B) indicates the assumed values of SMRI as described in Results. The high (Kψ=1.1247Kψ=1.1247) and low (Kψ=0.8374Kψ=0.8374) compliance scenarios represent the level of social mobility response related to the applied government measures.
When we combine low popular compliance with the limited variation of the stringency index between 21.62% and 49.21%, the governmental measures must be maintained most of the time at their peak rate, only allowing for a relaxation at the end of August and up to September 3 until October 15, when the requirements of governmental measures reach their lowest degrees, according to the control algorithm. From the observed data, a stringency value of 49.21% corresponds to a twothird restriction on public events, the closure of all schools and universities, a onequarter of government employees working from home, a 50% isolation compliance in areas subjected to lockdown, a closure of 28.6% nonessential activities and a onequarter reduction in transportation (Supplementary Table S3). The low compliance scenario, presented in Fig. 4B, shows that a small variation on the mobility compared to the realworld data could cause drastic changes on the epidemic curves shown in Fig. 5, almost doubling the number of infections and fatalities (by a factor of 1.84 and 1.89, respectively). As a result, the total collapse of the health care system would occur from midMay until midAugust. The efforts made to expand the number of hospital beds in the state (represented by the increased bed capacity made available from May on, from 466 to 1610 for clinical beds and from 422 to 1210 for ICU beds; Fig. 5C and D) would not be sufficient for the requirements of COVID19 patients.

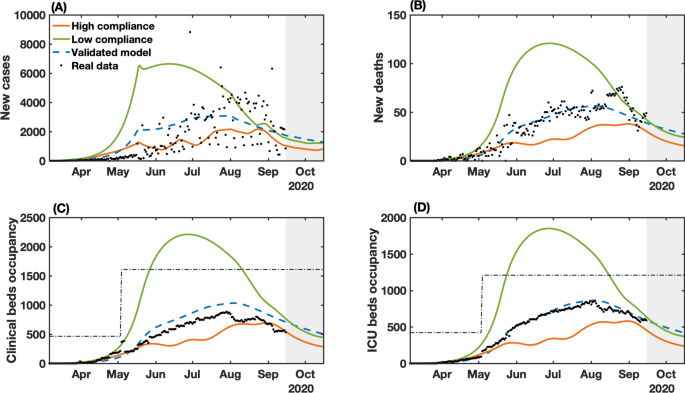

NMPCcontrolled simulated epidemic unfolding compared to realworld data in Bahia, Brazil. (A) New cases; (B) deaths; (C) clinical hospitalization and (D) ICU bed requirements at the state level. The dashedblue lines represent the dynamics of the validated model presented in Fig. 2 considering the observed SMRI time series in Fig. 3B. The dasheddotted lines represent the clinical and ICU bed limits, increased from May on, from 466 to 1610 for clinical beds and from 422 to 1210 for ICU beds. Raw data (black dots) from March 6 to September 15, 2020, are shown in this graph with a daily timescale. The high (Kψ=1.1247Kψ=1.1247) and low (Kψ=0.8374Kψ=0.8374) compliance scenarios represent the level of social mobility response related to the applied government measures.
In contrast, a more optimistic scenario is obtained with a high population compliance to measures. In Fig. 4A, we observe that when the population has a high level of compliance to measures, the optimal level of stringency can be kept under 40% for most of the time, with the highest values of stringency (49.21%) occurring between April 10 to May 21. To compare with the enforced measures, a 38.10% level of stringency index corresponds to the halting of 66.7% of public events, the closure of all schools and universities, onequarter of government employees working from home and the closure of 42.8% of nonessential activities7. In the high compliance scenario, the control framework yields an improved epidemiological situation compared with the actual scenario. The projection results in an estimated decrease of 38.2% in the number of cases, 37.9% in the number of deaths, and 33% of the maximum occupancy of clinical and ICU beds (Fig. 5). Our results also point that, in highly compliant populations, periodic interventions, i.e. alternating periods of high and low stringency, emerge naturally as the optimal strategy to promote control of the transmission (Fig. 4A). This can be a less dramatic mitigation alternative, which by itself could result in increased population compliance to measures.
The control results from September 16 to October 15 predicts an initial high level of required stringency in both low and high compliance scenarios (Fig. 4), followed by a gradual lifting while keeping the downward trend for the epidemic curves. This initial highlevel requirement is intuitive if the aim is to reduce cases as close to the basal level as possible (dashed line in Fig. 5). In fact, in the low compliance scenario the number of cases, fatalities and hospitalizations is higher than the basal level represented, while in the high compliance scenario the transmission was still presenting a slow increase. The proposed control algorithm is able to provide the maximum allowed values of interventions to reduce the number of cases. However, the behavioral response is insufficient to allow a control of the epidemic curves as shown in Fig. 5. An alternative would be to strengthen government measures, in the case of low popular support, as shown in Supplementary Figs. S3 and S4.
Finally, comparing the control framework results with the unfolded local scenario, we note that the proposed control algorithm is able to maintain the clinical and ICU bed occupancy below the thresholds of available beds, reduce the total number of infection and deaths, while keeping approximately the same level of applied measures.
Discussion
In this work, we introduced a framework for optimizing the required levels of public health policies, that translate into variable social distancing effects, during an unfolding pandemic. This tool combines control theory, parameter identification, and nonlinear dynamic modeling to optimize the level of governmental measures according to human behavior, in terms of mobility patterns, during a pandemic. We extend and validate a compartmental mathematical model9 that describes the dynamic of symptomatic and asymptomatic/nondetected cases, deaths, and health service requirements, considering the temporal influence of social mobility. By evaluating the effects of social distancing measures enacted locally, we provide a mathematical relationship between interventions and the degree of compliance of the population, measured by the reduction in people’s mobility. We embedded this model in an adaptive control algorithm that can help set policy targets such as the maintenance, heightening or lifting of NPIs (Fig. 4). The utility of this approach is illustrated by studying the dynamics of COVID19 in Bahia, Brazil, which offered opportunities for an enhanced control of the epidemic (Fig. 5). However, the method is simple and versatile and can be deployed to the analysis of other infectious diseases in other populations, predicting the level of required measures with accuracy. A benefit of this approach is that the levels of predicted stringency can be finetuned to adjust to the fragilities of the targeted population and the government capabilities to implement a measure, which can depend on multiple factors including the availability of local resources and political stability.
We used Bahia, Brazil as a proxy of an area with a large population, limited health infrastructure, and stark socioeconomic inequalities. First, we performed a preassessment to reproduce the dynamics of COVID19 in the state from March 6 to September 15, 2020. By leveraging the realworld levels of locally implemented measures with the observed social mobility patterns in this period, our control algorithm identified optimal time windows where the measures and high level of population response (such as that observed at the beginning of the epidemic in the state) can be applied with different magnitudes. In this scenario, the number of cases, deaths and hospitalizations could have been averted by nearly 64%, and the population would have benefited with more extended periods of relaxation of social distancing measures through the enforcement of periodic interventions, which others have shown lead to improved transmission control38,39,40, while alleviating the multiple deleterious facets of prolonged human confinements. Such an achievement can be strategically combined to reduce the impact on the health system and on the economy. In contrast, our findings highlight the importance of widespread compliance to enforced measures. In a scenario of low popular compliance, governments are forced to increase the level of measures to protect the health care system from collapsing. The results in Bahia show that a low compliance could lead to double the number of cases and deaths, and the accompanying collapse of the healthcare system would be inevitable. This is particularly important when planning measures in less developed countries, where poverty is associated with low education levels and, consequently, difficulties in realizing the importance of actions aimed at controlling spread of the virus41,42. More vigorous levels of stringency could further decrease the transmission rates; however, the economic effects of prolonged curfews cannot be ignored.
In practice, our proposal requires some care. In particular, longterm forecasting using mathematical models suffer from inherent uncertainties. A realworld application of our method would require constant recalibration with newly observed data, which we showed substantially improved the accuracy of the predictions. Also, the underlying implemented model does not account for age structure, heterogeneity in contact patterns or stochasticity. In spite of its simplicity, the shortterm predictions are still robust and thus adequate for supporting policy recalibration in short time windows. Additionally, although we can predict the levels of stringency that should be applied in a region, more studies are warranted to understand how the different categories of intervention, such as the closure of schools, the limits on travels and people’s movements, among other NPIs, influence the reduction of cases, as well as how closely related interventions should be prioritized.
There has been strong interest in trying to define the set of NPIs most effectively capable of delaying the spread of COVID191,2,16,19,43. As noted, various factors complicate the choice of a particular measure over another: First, there is extensive overlap among commonly enacted NPIs (eg. ban on small and largescale gatherings); second, many measures were enacted in parallel or almost successively, hindering the evaluation of their individual effectiveness since they are highly correlated. Haug et al.2 performed the most complete analysis of NPI effects to date, systematically measuring the impact on the RtRt of COVID19 of 6,068 individual measures in 79 countries and finding that no single intervention is able to reduce RtRt below one, and that measures should be combined and deployed in a timely fashion for maximal efficacy. To avoid the pitfalls associated with having to determine the set of NPIs able to maximally decrease the growth of the epidemic, we instead focused on predicting an optimal level of stringency, that in turn influences the mobility patterns of the population. By plugging this relationship into a control algorithm, we were able to reliably assess the level of measures needed to reach a situation of epidemic control, particularly by averting full occupation of available hospital beds. It would be up to policymakers to choose a combination of NPIs leading to the required stringency level, as predicted by the controller, since distinct combination of measures can lead to equivalent stringency values2. More work is needed to better understand the value of individual NPIs and their optimal use to accomplish control targets.
Deploying this strategy in other settings would require, in addition to the local epidemiological data used during the calibration of part of the model’s parameters28, more details of the population’s compliance to measures, as our results point that the level of compliance can markedly influence the dynamics of COVID19 spread, and these may vary by factors such as education level and degree of individual freedom across countries. Consequently, identical levels of stringency may evoke different behavioral responses according to the compliance of each individual and their emerging collective attitudes–ie. people’s actions, including health behavior, are subject to multiple psychological factors and motivations44,45, herein modeled as high and low compliant populations. However, the compartmental model that serves as the basis for the dynamics of contagion is general enough to be readily used in other regions, while also being adaptable to other disease domains.
Methods
Data collection
We collected epidemiological data of COVID19 in Bahia, a state with 14.8 million population in the Northeast of Brazil, for the purpose of applying the model developed here. The data comprise the daily number of registered cases and deaths from COVID19, as well as the daily number of clinical hospitalization and ICU requirements, obtained from the Secretary of Health of Bahia from March 6 to September 15, 2020. Social mobility is represented by the data from “InLoco”, a Brazilian technology startup, which is available at http://mapabrasileirodacovid.inloco.com.br29. The mobility is measured according to the population behavior constructed from anonymous geomovement information extracted from 60 million mobile devices throughout the country. The used metric, referred to in the manuscript as the social mobility reduction index (SMRI), is defined in the interval 0–100%. It measures the displacement of devices from its selfdefined home location, such that the bigger the index, the lower is the population mobility.
In addition to the epidemiological and the social mobility data, we collected all the decrees aiming to mitigate the spread of the disease in the state of Bahia. This dataset resulted from an update to the effort originally described in work of Jorge at al.7. Therein, the authors performed an analysis of all state governmental decrees applied in each Brazilian state, deriving an index to measure the stringency of COVID19associated interventions adapted to the Brazilian context, originally reported in46. The index evaluate measures related to the Cancellation of public events (O1), Closure of schools/universities (O2), Homeoffice for governmental employees (O3), Isolation of groups or the whole population (O4), Closure of nonessential businesses and public activities (C1), and Transport lock (C2). As presented by Jorge at al.7, the total stringency index is a combination of the evaluation of these measures. The index varies from 0 to 1 meaning that the lower the index, the lower the level of governmental measures to mitigate the spread of the disease in the region.
Model design
The SEIIHURD model considered here9 describes the dynamics of a population divided into compartments as susceptible (S), exposed (E), asymptomatic/nondetected infections (Ia)(Ia) and symptomatic (reported) infections (IsIs). The reported infections may present mild to severe symptoms, thus a proportion of them may require hospitalizations (clinical beds), (H), or intensive care unity (ICU) admission (U). After the infectious period, individuals may recover (R) from the disease. A more severe outcome results in death (D) due to COVID19, after passing for a period of hospitalization or ICU. In this model the transmission is not affected by individuals in H and U compartments. Also, based on the results presented by Oliveira et al.9, we also consider a flux of patients between the H and U compartments, modeling the condition that patients admitted to a clinical ward may worsen their condition and require an ICU bed; conversely, patients in intensive care may need clinical care prior to discharge and recovery.
We added new definitions to the SEIIHURD model to consider influences on the dynamics due to human behavior and healthcare improvements, by allowing the variation of some gains over time. The resulting model SEIIHURD+ψψ is described by the systems of equations (1) below:
Specifications of the epidemiological parameters are given in Supplementary Table S5. The temporal series ψψ accounting for social mobility patterns is given from the InLoco dataset previously described.
In order to improve the predictions that will dictate control measures, multiplicative gain factors, gigi’s, are introduced into some terms of the original SEIIHURD model. In this context, the factors g1,…,g11g1,…,g11 are used to account for temporal uncertainties in the parameters β,h,ξ,γH,γU,μH,μU,ωH,ωU,δβ,h,ξ,γH,γU,μH,μU,ωH,ωU,δ and p according to the epidemic data which are read continuously by the control system. The uncertainties upon these parameters may appear over time due to different reasons during the course of pandemic, from noises and errors in the reported data to medical treatments improvements, equipment and medical supplies, and screening and testing measures. As a result, the internal adaptive control model can use these timevarying gains in order to enhance forecasting on the disease’s spread and, thus, improve control performance22,24. In contrast, when the terms gigi are set to 1, the transmission rate ββ is written in terms of a Heaviside step function as in Oliveira et al.9, the equations [1a  1h] reduce to the SEIIHURD model with social mobility index influencing the exposure to risks of the susceptible population, here defined as SEIIHURD+ψψ model with unitary gains.
Parameter estimation
To carry out our analysis, we consider the literature review presented by Oliveira et al.9 to evaluate the key epidemiological parameters κκ, γaγa and γsγs, which are maintained fixed during the current work. The timevarying terms g1βg1β, g2hg2h, g3ξg3ξ, g4μUg4μU, g5γUg5γU, g6γHg6γH, g7pg7p, g8ωUg8ωU, g9ωHg9ωH, g10μHg10μH and g11δg11δ have the epidemiological search interval, shown in Supplementary Table S2.
The estimation is performed by ordinary least square minimization problem in the identification algorithm so that the parameter values adjust the model to the series of cumulative cases (C), clinical beds occupancy (H), ICU beds occupancy (U) and deaths (D). In this approach, we define the model parameters as decision variables of an optimization problem, which is formulated to minimize the square error between the model curves and the actual data. The optimization problem is proposed as a constrained nonlinear multivariable function without gradient definition. Therefore, we apply the optimization solver fmincon, available in the Optimization Toolbox in MATLAB, developed by Mathworks, in order to find the model parameter values that optimally adjust the model curves to the C, H, U, and D series. The absolute error variables terms used in the optimization layer are the following:
wherein the variables C^, H^, U^, D^C^, H^, U^, D^ are obtained according to the SEIIHURD+ψψ model equations [1a  1h]. The complete optimization problem is formulated as follows:
wherein w1=1, w2=5,w1=1, w2=5, and w3=w4=35w3=w4=35 are preselected positive weighting values (tuning parameters), used to normalize the order of magnitude of the total cost and minimize the errors ErCErC, ErHErH, ErUErU and ErDErD. The values titi and tftf define the interval [ti,tf][ti,tf] where we want to apply the optimization layer.
When the SEIIHURD+ψψ with unitary gains is considered, the timevarying parameter ββ is affected by the population mobility explicit in the model by the series of ψψ. Thus, the values of ββ are estimated considering the mean value of ψψ over the identified interval of variations of ββ. Additionally, for the validation of the SEIIHURD+ψψ with unitary gains, we do not reestimate the remaining parameters and they are kept as presented by Oliveira et al.9 (Supplementary Table S1).
Model validation and prediction algorithm
In order to improve the performance of our future prediction, we separated our data into sets: a training set containing the first points, from t1t1 to t169t169, of each data series and a testing set containing the remaining points of the series going from t170t170 to t194t194, the last point of the data we are using. Within the training set, the data is split into consecutive twoweek windows, which are sufficiently large to properly describe typical changes in social behavior. In each of these windows, we applied the optimization procedure defined in equation (6) to obtain gains g1βg1β, g2hg2h, g3ξg3ξ, g4μUg4μU, g5γUg5γU, g6γHg6γH, g7pg7p, g8ωUg8ωU, g9ωHg9ωH, g10μHg10μH and g11δg11δ. We used the last estimated optimal values to forecast the remaining 25 days of available data and demonstrate the validity of the forecast.
The control system
In the course of the COVID19 pandemic, several measures were employed to overcome the socioeconomic impacts and the spread of SARSCoV2. The resulting control policies are passed either as a recommendation or as laws, aiming at reducing mobility, gatherings, and consequently slow the spread of the disease. Jorge et al.7 evaluated the combination of restriction measures applied to each Brazilian state at each time t, yielding the stringency index of implemented governmental measures. The index varies from 0 to 1 depending on the level of restrictions, where 0 means no COVID19specific measure applied and 1 corresponds to the most strengthened restriction, for instance, a full lockdown.
We denote here by u(t) the value of the control signal (stringency index) at time t. The NMPC is formulated considering a prediction horizon NpNp of three weeks, i.e. Np=21Np=21 days. However, the optimal control signal is applied only on the first 7 days, being recalculated in the next week. We argue that it is not reasonable to change the measures in smaller periods, which would possibly cause confusion to the population.
Each future control signal u(t) must be piecewise constant and increase/decrease in accordance with plausible desired levels of control imposed on social mobility. Accordingly, we consider discrete values for u, as given in Supplementary Table S3. Note that the control signal u(t) lies in the interval [0.2162,0.4921][0.2162,0.4921] for the scenario considering the real applied measures. For an hypothetical more rigorous scenario, the control signal lies in the interval [0.2162,0.6269][0.2162,0.6269] (Supplementary Figs. S5 and S6). These values were obtained by matching the guidelines enacted in Bahia up to date, as provided by Jorge et al.7. The algorithm to evaluate all possible future governmental measure is presented in NMPC algorithm section.
Bearing this in mind, we wanted to estimate what are the minimal measures necessary to guarantee that the number of clinical and ICU beds does not surpass the real capacity available in the state, that is, we seek to maintain:
The information about the number of clinical and ICU bed available, denoted by nclinicalnclinical and nICUnICU, were obtained from the Secretary of Health of Bahia. The values were expanded in the course of the epidemic and it is given by nclinical=466nclinical=466 and nICU=422nICU=422 for the period between March 6 and May 49, and nclinical=1610nclinical=1610 and nICU=1210nICU=1210 for the following period.
To maintain the desired levels of hospitalizations requirements given in Equations 7 and 8 , the proposed NMPC algorithm must act in order to ensure the following control objective (tradeoff objective):
is obtained, wherein Q is the weight tuning parameter used to ponder how much the control signal can vary. In other words, if Q is low, u(t) can vary more freely and achieve higher values, otherwise u(t) achieves lower values. This tradeoff adjustment is used to prioritize the minimization of either the control signal or the number of cases. Moreover, the tuning parameter Q can also vary in time to adapt to the priorities and the epidemic situation. In this case, at the beginning, we restrict the control actions, aiming to simulate a more realistic scenario, in accordance to what was achieved by the initial enacted acts. Later, we start to relax the control action in order to reduce even more the number of infections. Lastly, when the number of infections is reducing, we reduce even more the value of Q, aiming to avoid subsequent waves of infection.
Of note, the control algorithm can be tuned to adjust to each situation, considering the stage of the pandemic, the level of occupancy of ICU and clinical beds and, mainly, the government’s priorities, with a focus on increasing the restriction and the measures of social distancing or making them more flexible, adopting surveillance policies that work in parallel with the opening of economic activities and social life.
The control optimization process for the horizon of NpNp steps is assumed to minimize the number of symptomatic infection cases and also the stringency index measures, defined as follows:
Given that the NMPC framework offers finitely parametrized social distancing guidelines for the COVID19 spread, its implementation resides in simulating the validated SEIIHURD+ψψ along the prediction horizon with an explicit nonlinear solver and testing it according to all possible control u. Thus, the predicted variable IsIs at the last sample time tftf of the prediction horizon NpNp is used to evaluate the cost function JNMPC(⋅)JNMPC(⋅). The stringency index that implies in the violation of constraints are neglected. Then, the resulting control value is the one that yields the minimal JNMPC(⋅)JNMPC(⋅), while abiding to the aforementioned constraints. Finally, the stringency index is applied and the horizon slides forward. This paradigm is explained in the NMPC Algorithm section. We note that this methodology ensures the optimality of the solution u(k) regarding the control objective JNMPCJNMPC, as described by Rathai et. al.47.
After calculating the optimal control signal, we consider that the population responds with a certain dynamic to governmental measures, as proposed by Morato et. al.25. The dynamic response is defined as follows:
wherein ϱψ=0.4day−1ϱψ=0.4day−1 is a settling time parameter, which is related to the average time the population takes to respond to the enacted social isolation measures and KψKψ is a gain relationship between ψψ and u. T2T2 represents the sampling period of the NMPC algorithm of one week.
Data Availability
All data is available within the manuscript or its supplementary materials, as well as in the GitHub code repository at: https://github.com/cidacslab/covidcontrolpolicies.
References
 1.
Hsiang, S. et al. The effect of largescale anticontagion policies on the COVID19 pandemic. Nature 584, 262 (2020).
 2.
Haug, N. et al. Ranking the effectiveness of worldwide COVID19 government interventions. Nat. Hum. Behav. 1–10 (2020).
 3.
Valensisi, G. Covid19 and global poverty: are LDCs being left behind? Eur. J. Dev. Res. 32, 1535–1557 (2020).
 4.
Laborde, D., Will, M., & Vos, R. COVID19 and global food security. J. Swinnen, J. McDermott, eds. (International Food Policy Research Institute–IFPRI, 2020), vol. 32, chap. 2, pp. 16–19. Washington, DC.
 5.
Dong, E., Du, H. & Gardner, L. An interactive webbased dashboard to track COVID19 in real time. Lancet Infect. Dis. 20, 533 (2020).
 6.
Aquino, E. M., Silveira, I. H., Pescarini, J. M., Aquino, R. & SouzaFilho, J. . A. . d. Medidas de distanciamento social no controle da pandemia de COVID19: potenciais impactos e desafios no Brasil. Ciência & Saúde Coletiva 25, 2423 (2020).
 7.
Jorge, D. C. P. et al. Assessing the nationwide impact of COVID19 mitigation policies on the transmission rate of SARSCoV2 in Brazil. Epidemics 35, (2020).
 8.
Candido, D. S. et al. Evolution and epidemic spread of SARSCoV2 in Brazil. Science (New York, N.Y.) 369, 1255–1260 (2020).
 9.
Oliveira, J. et al. (2021) Mathematical modeling of COVID19 in 14.8 million individuals in Bahia, Brazil. Nat. Commun. 12, 1 (2021).
 10.
Costa, G. S., Cota, W., Ferreira, S. C. Outbreak diversity in epidemic waves propagating through distinct geographical scales. Phys. Rev. Research 2, (2020).
 11.
Melo, C. M. D., Silva, G. A., Melo, A. R. & Freitas, A. C. COVID19 pandemic outbreak: the Brazilian reality from the first case to the collapse of health services. Anais da Academia Brasileira de Ciências 92, (2020).
 12.
Morato, M. M., Pataro, I. M. L., Americano da Costa, M. V., NormeyRico, J. E. A parametrized nonlinear predictive control strategy for relaxing COVID19 social distancing measures in Brazil. ISA Trans. (2020).
 13.
Buss, L. F. et al. Threequarters attack rate of SARSCoV2 in the Brazilian amazon during a largely unmitigated epidemic. Science 371, (2020).
 14.
Fontanet, A. & Cauchemez, S. COVID19 herd immunity: where are we?. Nat. Rev. Immunol. 20, 583 (2020).
 15.
Sridhar, D. & Gurdasani, D. Herd immunity by infection is not an option. Science 371, 230 (2021).
 16.
Flaxman, S. et al. Estimating the effects of nonpharmaceutical interventions on COVID19 in europe. Nature 584, 257 (2020).
 17.
Estrada, E. Covid19 and SARSCoV2. Modeling the present, looking at the future. Phys. Rep. 869, 1 (2020).
 18.
Ruktanonchai, N. W. et al. Assessing the impact of coordinated COVID19 exit strategies across Europe. Science 369, 1465 (2020).
 19.
Dehning, J. et al. Inferring change points in the spread of COVID19 reveals the effectiveness of interventions. Science 369, (2020).
 20.
Chinazzi, M. et al. The effect of travel restrictions on the spread of the 2019 novel coronavirus (COVID19) outbreak. Science 368, 395 (2020).
 21.
Knight, G. M. et al. Bridging the gap between evidence and policy for infectious diseases: How models can aid public health decisionmaking. Int. J. Infect. Dis. 42, 17 (2016).
 22.
DjidjouDemasse, R. et al. Optimal COVID19 epidemic control until vaccine deployment. medRxiv (2020).
 23.
Köhler, J. et al. Robust and optimal predictive control of the COVID19 outbreak. Annual Reviews in Control (2020).
 24.
Tsay, C., Lejarza, F., Stadtherr, M. & Baldea, M. Modeling, state estimation, and optimal control for the us COVID19 outbreak. Sci. Rep. 10, 10711 (2020).
 25.
Morato, M. M., Bastos, S. B., Cajueiro, D. O. & NormeyRico, J. E. An optimal predictive control strategy for COVID19 (SARSCoV2) social distancing policies in Brazil. Ann. Rev. Control 50, 417 (2020).
 26.
Xiong, C., Hu, S., Yang, M., Luo, W. & Zhang, L. Mobile device data reveal the dynamics in a positive relationship between human mobility and COVID19 infections. Proc. Natl. Acad. Sci. 117, 27087 (2020).
 27.
Hotez, P. J., HuetePerez, J. A. & Bottazzi, M. E. COVID19 in the Americas and the erosion of human rights for the poor. PLOS Neglect. Trop. Dis. 14, 1 (2020).
 28.
Materials and methods are available as supplementary materials at the Nature Scientific Reports website.
 29.
InLoco, Social isolation map COVID19 (in portuguese) (2020). https://mapabrasileirodacovid.inloco.com.br/pt. Accessed Jan 22, 2021.
 30.
Barberia, L. G., Cantarelli, L. G. R., de Faria Oliveira, M. L. C., de Paula Moreira, N. & Rosa, I. S. C. The effect of statelevel social distancing policy stringency on mobility in the states of Brazil. Revista de Administração Pública [online] 55, 27 (2021).
 31.
Bastos, S. B., Morato, M. M., Cajueiro, D. O. & NormeyRico, J. E. The COVID19 (SARSCoV2) uncertainty tripod in Brazil: assessments on modelbased predictions with large underreporting. Alexandria Eng. J. 60, 4363 (2021).
 32.
Scottish Government, Coronavirus (COVID19): local protection levels (2020). https://www.gov.scot/publications/coronaviruscovid19stayathomeguidance. Accessed Jan 10, 2021.
 33.
The White House, Guidelines: opening up America again (2020). https://www.whitehouse.gov/openingamerica. Accessed Jun 1, 2020.
 34.
State Government of São Paulo, Brazil, São Paulo plan: conscious resuming (Plano São Paulo: retomada consciente) (2021). https://www.saopaulo.sp.gov.br/planosp. Accessed Jan 10, 2021.
 35.
Government of Ireland, Resilience and Recovery 20202021: Plan for Living with COVID19 (2021). https://www.gov.ie/en/campaigns/resiliencerecovery20202021planforlivingwithcovid19. Accessed Jan 10, 2021.
 36.
North Carolina state government, Staying Ahead of the Curve (2021). https://www.nc.gov/covid19/stayingaheadcurve. Accessed Jan 10, 2021.
 37.
Larrosa, J. M. C. SARSCoV2 in Argentina: lockdown, mobility, and contagion. J. Med. Virol. (2020).
 38.
Chowdhury, R. et al. Dynamic interventions to control COVID19 pandemic: a multivariate prediction modelling study comparing 16 worldwide countries. Eur. J. Epidemiol. 35, 389 (2020).
 39.
Kissler, S. M., Tedijanto, C., Goldstein, E., Grad, Y. H. & Lipsitch, M. Projecting the transmission dynamics of SARSCoV2 through the postpandemic period. Science 368, 860 (2020).
 40.
Hindes, J., Bianco, S. & Schwartz, I. B. Optimal periodic closure for minimizing risk in emerging disease outbreaks. PLoS One 16, 1 (2021).
 41.
Aiyewumi, O. & Okeke, M. I. The myth that Nigerians are immune to SARSCoV2 and that COVID19 is a hoax are putting lives at risk. J. Glob. Health 10, 1 (2020).
 42.
Ogunleye, O. O. et al. Response to the novel corona virus (COVID19) pandemic across Africa: successes, challenges, and implications for the future. Front. Pharmacol. 11, 1205 (2020).
 43.
Tian, H. et al. An investigation of transmission control measures during the first 50 days of the COVID19 epidemic in China. Science 368, 638 (2020).
 44.
Chan, D. K., Zhang, C.Q., & Josefsson, K. W. Why people failed to adhere to COVID19 preventive behaviors? perspectives from an integrated behavior change model. Infect. Control Hosp. Epidemiol. 1–6 (2020).
 45.
Chan, D.K.C. et al. Preventing the spread of H1N1 influenza infection during a pandemic: autonomysupportive advice versus controlling instruction. J. Behav. Med. 38, 416 (2015).
 46.
Hale, T. et al. Oxford COVID19 Government Response Tracker (2020). https://covidtracker.bsg.ox.ac.uk/. Accessed Dec 15, 2020
 47.
Rathai, K. M. M., Alamir, M., Sename, O. & Tang, R. A parameterized NMPC scheme for embedded control of semiactive suspension system. IFACPapersOnLine 51, 301 (2018).
Acknowledgements
We gratefully acknowledge the InLoco team, namely Jose Luciano Melo, Raiza Oliveira, Afonso Delgado, Abel Borges, Andre De’Carli, Hector Pinheiro, Lucas Rufino, Gabriel Teotonio and Luiza Botelho for providing raw files of the social mobility reduction data used here.
Funding
